O1900-220 价格: Model Number:O1900-220

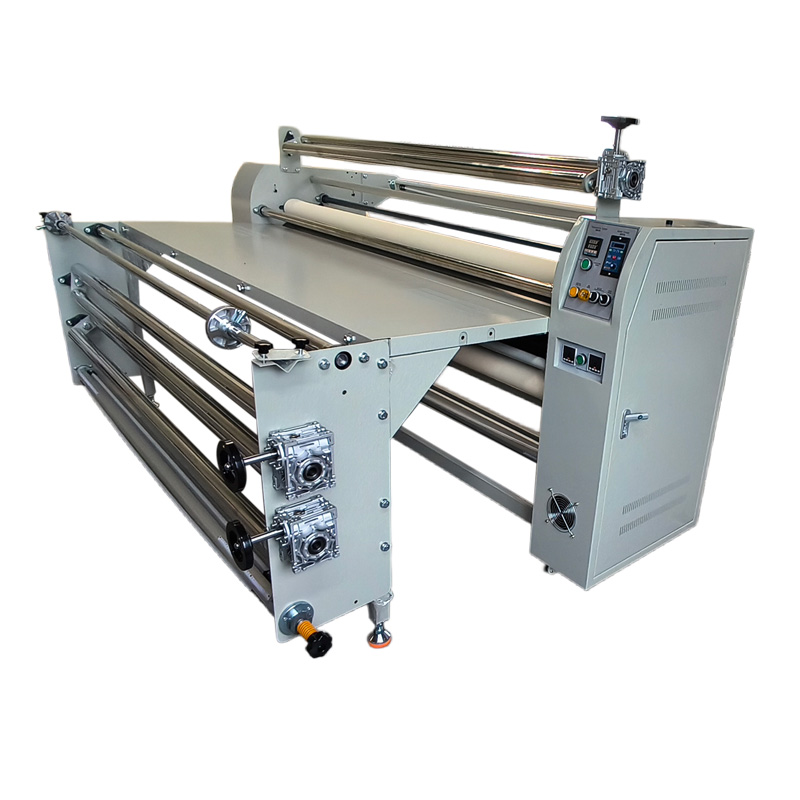

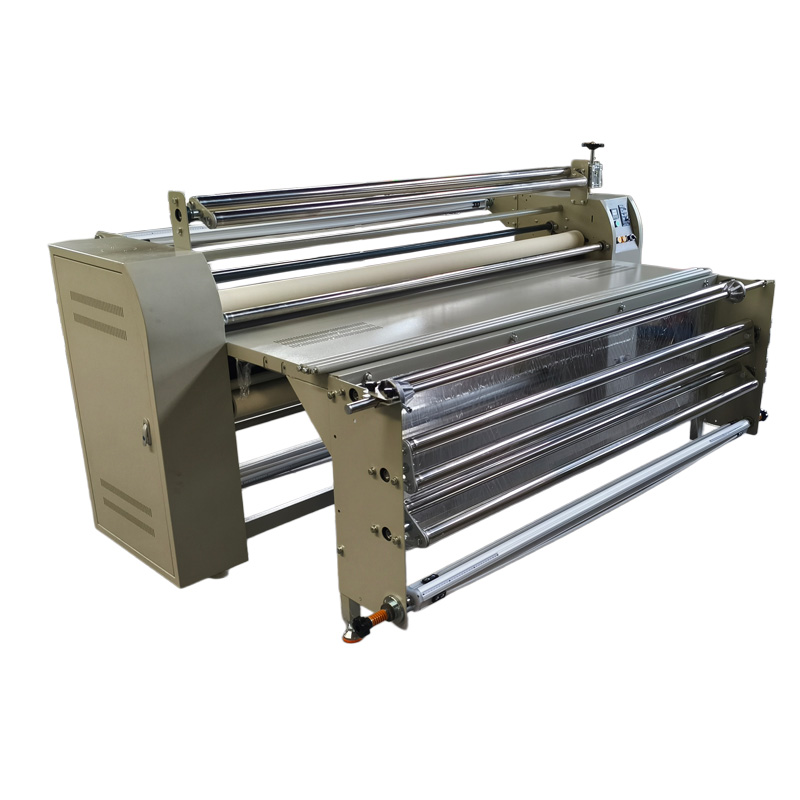

Oil Heating Textile Heat Transfer Machine

Online inquiry
Details Specification Packaging

Thermal oil circulating heating, even heating across the whole roller, minimal temperature difference, consistent printing color.

Strong heat storage capacity, stable temperature under 24h continuous mass production, no obvious temperature drop.

Intelligent temperature control, stable thermal inertia, suitable for thin & thick ribbons, double-side transfer process.

Low heat loss, energy balanced operation; avoid local dry burning, extend roller service life.

Widely compatible: ribbons, elastic tapes, luggage belts, care labels, various transfer films.

Optional release paper unwinding & rewinding system for automatic double-sided ribbon transfer.


中文英文(行业标准译法)
英文翻译
设备型号Model1900-220Model: 1900-220
毛毯宽度Felt Width1920mmFelt Width: 1920mm
转印材料宽度Transfer Material Width1800mmTransfer Material Width: 1800mm
电压Voltage380VVoltage: 380V
转印速度Transfer Speed20-80米/每小时Transfer Speed: 20–80 m/h
温度范围Temperature Range室温-250℃Temperature Range: Ambient ~ 250℃
收放系统Unwinding & Rewinding System3套Unwinding & Rewinding System: 3 sets
加热辊筒直径Heated Roller Diameter220mmHeated Roller Diameter: 220mm
辊筒Roller特氟龙涂层Roller: Teflon coated
毛毯偏出报警Felt Deviation Alarm选配Felt Deviation Alarm: Optional
自动降温Automatic Cooling选配Automatic Cooling: Optional
毛毯调整形式Felt Adjustment Mode手动调节Felt Adjustment Mode: Manual adjustment
加热功率Heating Power10.2kwHeating Power: 10.2 kW
总功率Total Power11kwTotal Power: 11 kW
加热方式Heating Method油导热Heating Method: Thermal oil circulation
主机尺寸Main Machine Dimension长2750*Main Machine Dimensions:
L2750 × W2670 × H1390 mm
宽2670*
高1390mm
平台尺寸Platform Dimension长2030*Platform Dimensions:
L2030 × W2050 × H920 mm
宽2050*
高920mm
机器总重量Total Machine Weight1000kgTotal Machine Weight: 1000 kg
报价 RMBQuotation (RMB)28000Quotation: RMB 28,000
