O1700-220P 价格: Model Number:1700-220 Pro+

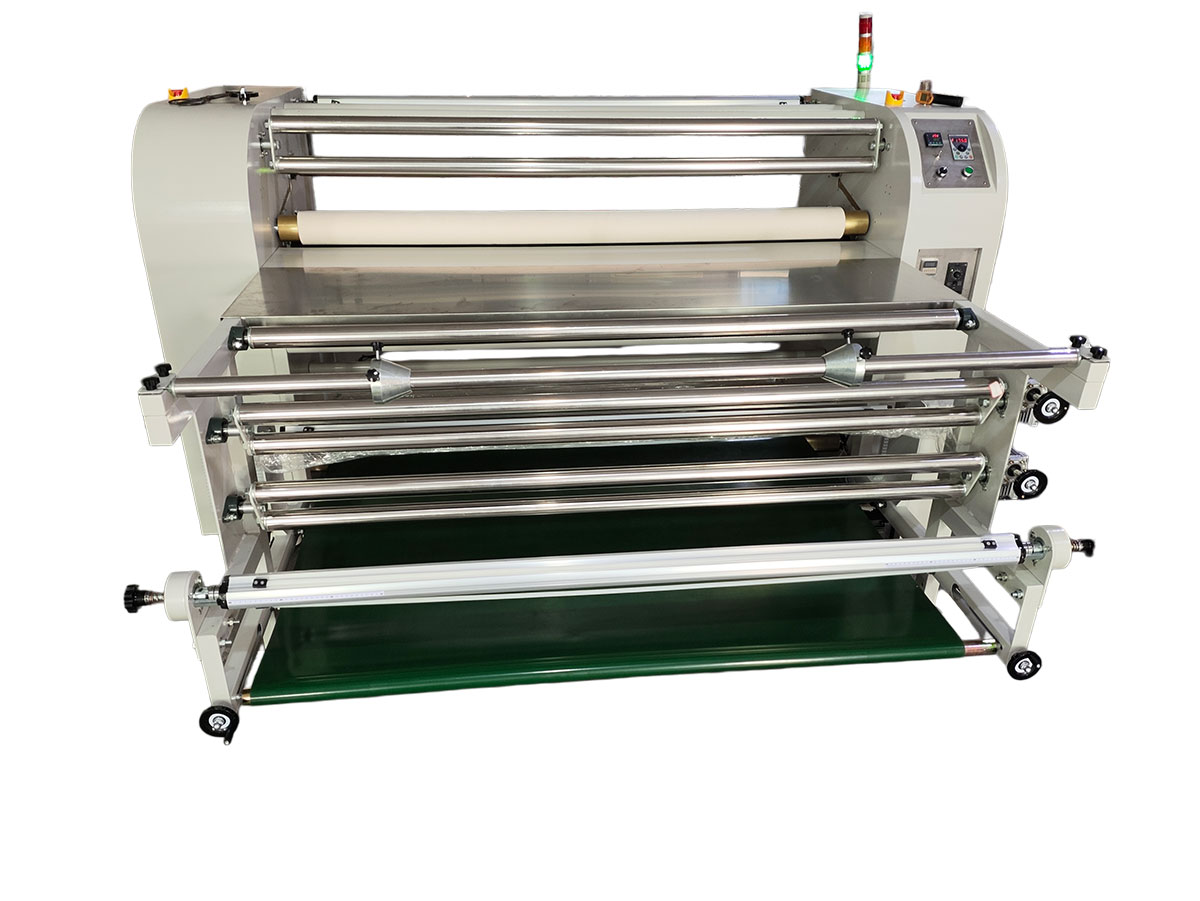

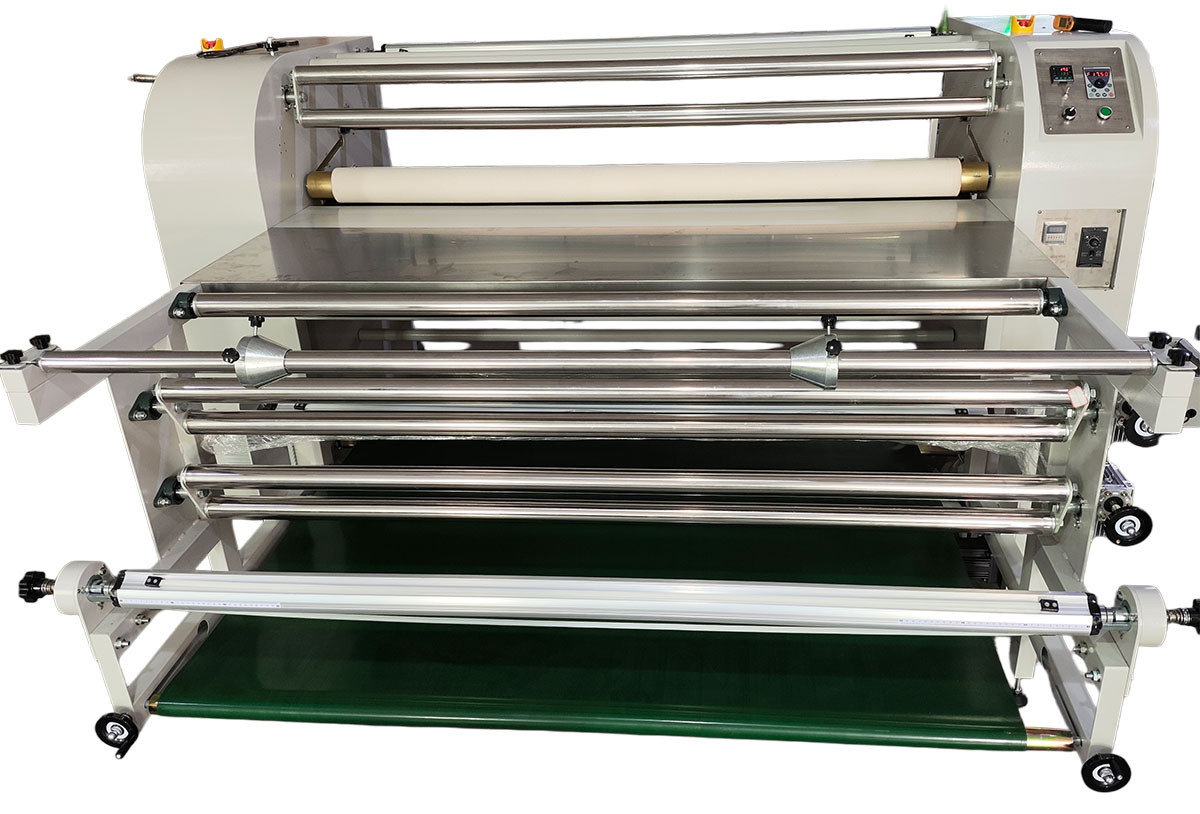

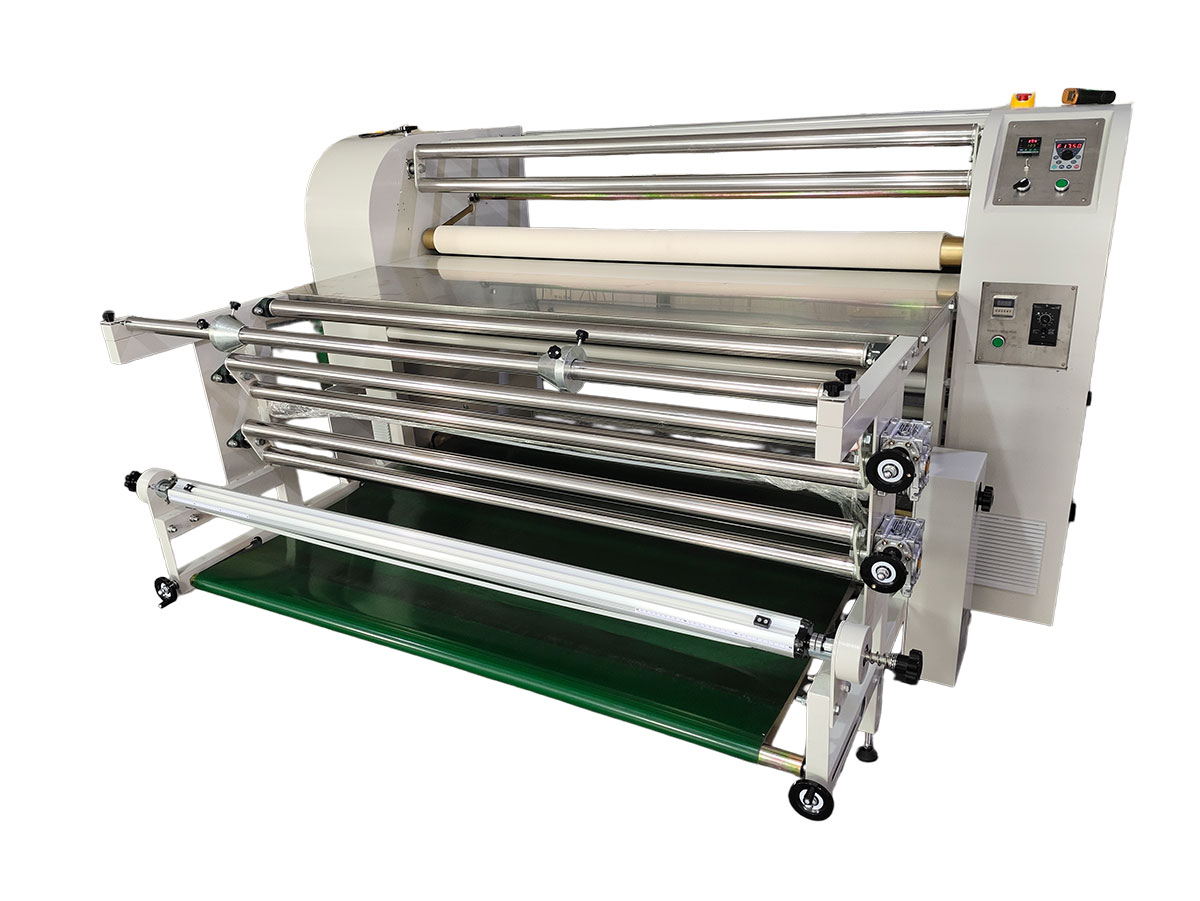

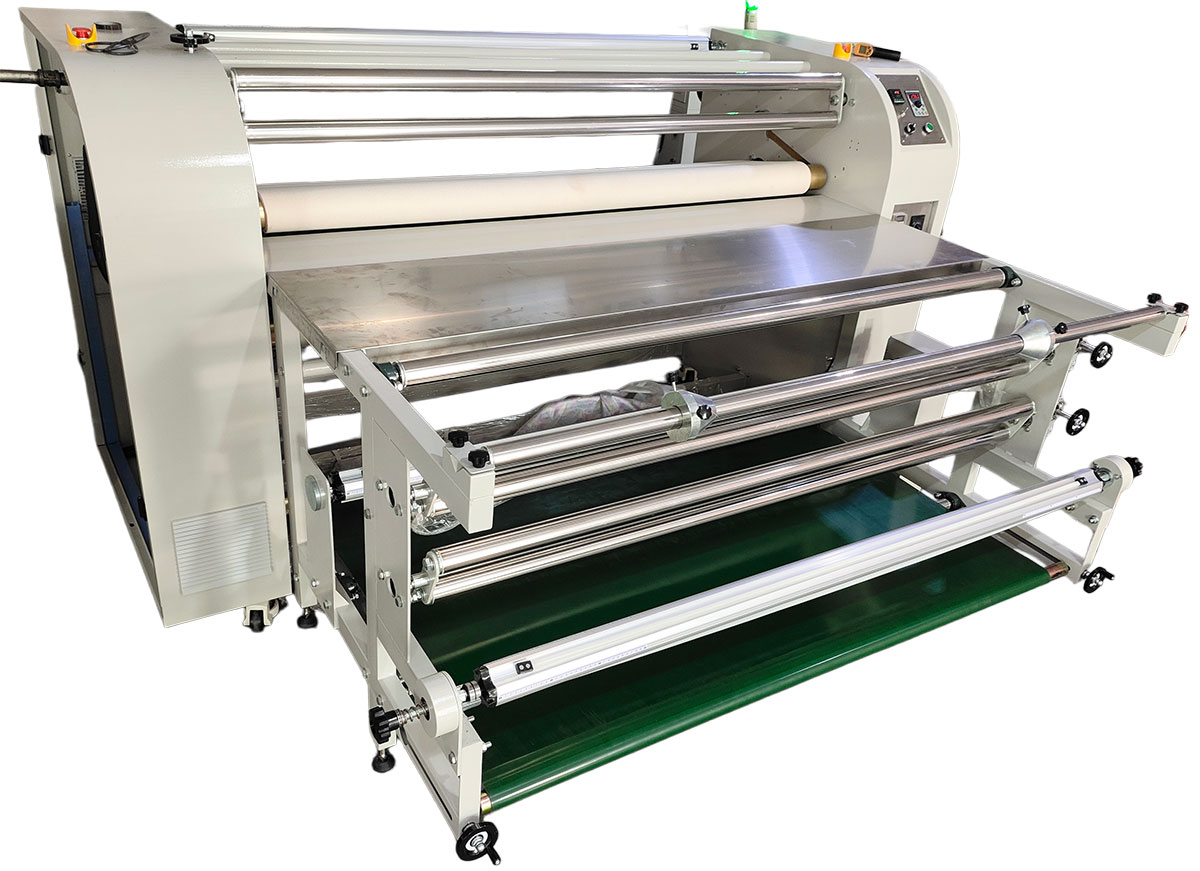

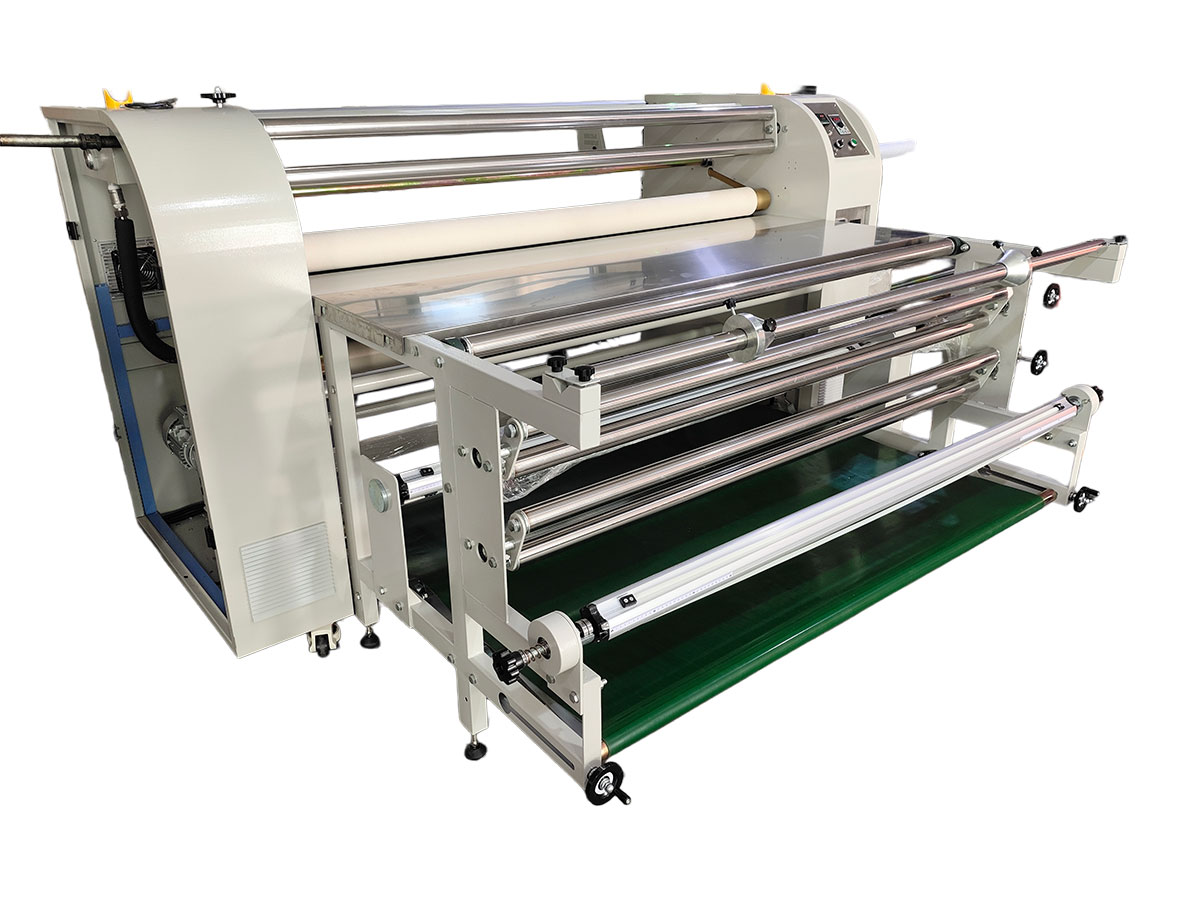

Oil Heating Heat Transfer Machine

Online inquiry
Details Specification Packaging

  1. Adopt oil circulation heating design, uniform heating and constant temperature, effectively reduce color difference.

  2. Wide temperature range and excellent high temperature resistance, with bright color and high color fastness.

  3. Industrial wide width design, suitable for garments, home textiles, bags, advertising fabrics and other materials.

  4. Adjustable transfer speed from 20 to 120m/h, flexible for mass production and custom orders.

  5. High-density Teflon coated roller, non-stick, high temperature resistant, wear-proof and durable.

  6. Equipped with 3 sets of winding and unwinding systems, ensuring smooth feeding and rewinding.

  7. Reinforced overall frame, stable operation, low vibration and low noise for long-time continuous work.

  8. Advanced constant temperature oil control system, precise temperature control and low defect rate.

  9. Manual blanket adjustment structure, simple operation and easy to learn.

  10. Optional blanket deviation alarm and automatic cooling function for safer production.

  11. Optimized power configuration, energy saving and lower operating cost.

  12. Compact structure and reasonable size, easy installation and convenient movement.

  13. Gentle and even oil heating, no damage to chemical fiber and blended fabrics.

  14. Factory direct supply with industrial quality, cost-effective and reliable after-sales service.


中文English参数
设备型号Model1700-220
毛毯宽度Blanket Width1720mm
转印材料宽度Transfer Material Width1600mm
工作电压Working Voltage220V/380V
转印速度Transfer Speed20–120 m/h
温度范围Temperature RangeRoom Temperature~230℃
收放系统Rewind & Unwind System3 sets
加热辊筒直径Heating Roller Diameter220mm
辊筒处理Roller TreatmentTeflon Coating
毛毯偏出报警Blanket Offset AlarmOptional
自动降温功能Automatic Cooling SystemOptional
毛毯调整方式Blanket AdjustmentManual Adjustment
加热功率Heating Power8.2KW
总功率Total Power9KW
加热方式Heating TypeOil Conduction Heating
主机尺寸Main Body SizeL700×W2350×H112mm
平台尺寸Platform SizeL80×W1900×H920mm
机器净重Net Weight800kg
