E1800-220PT2 价格: Model Number:E1800-220PT2

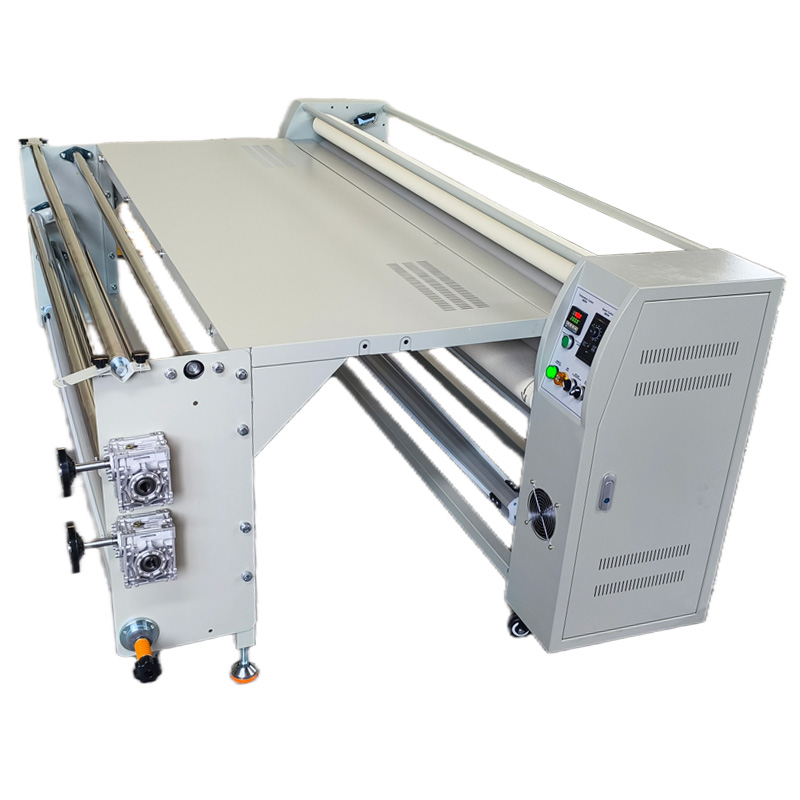

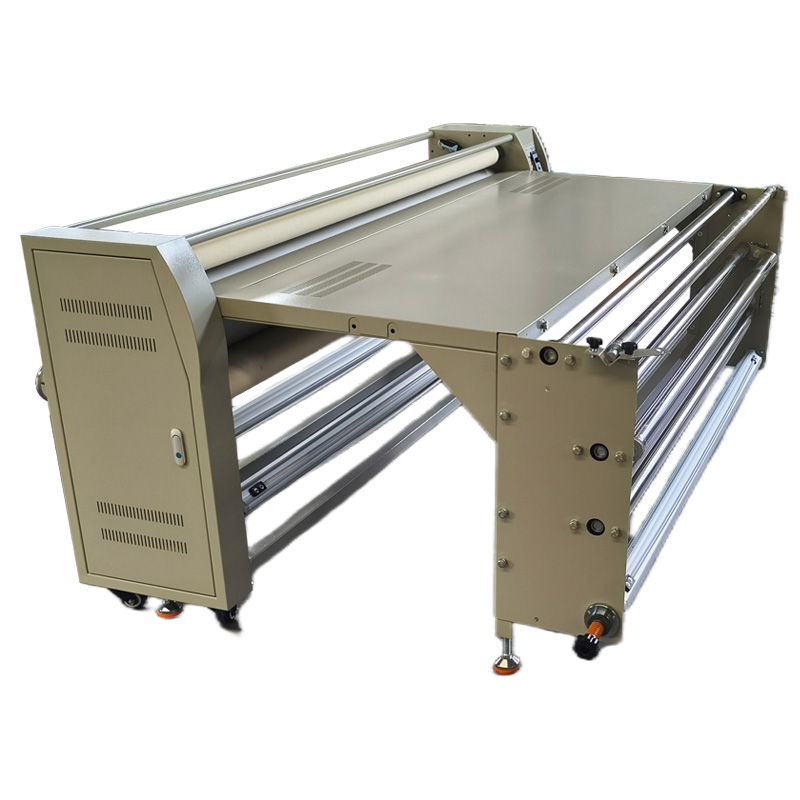

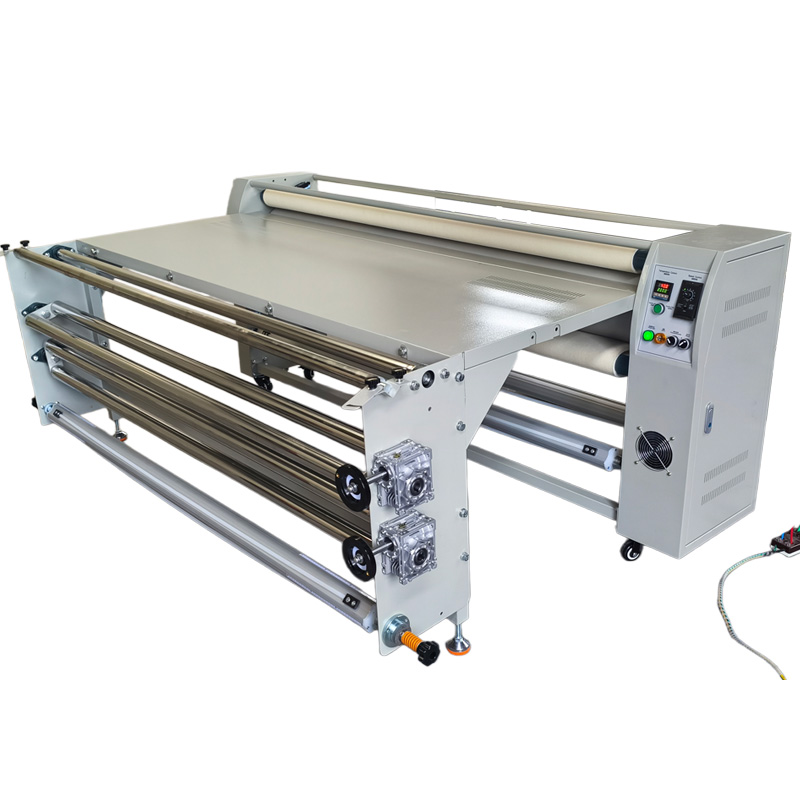

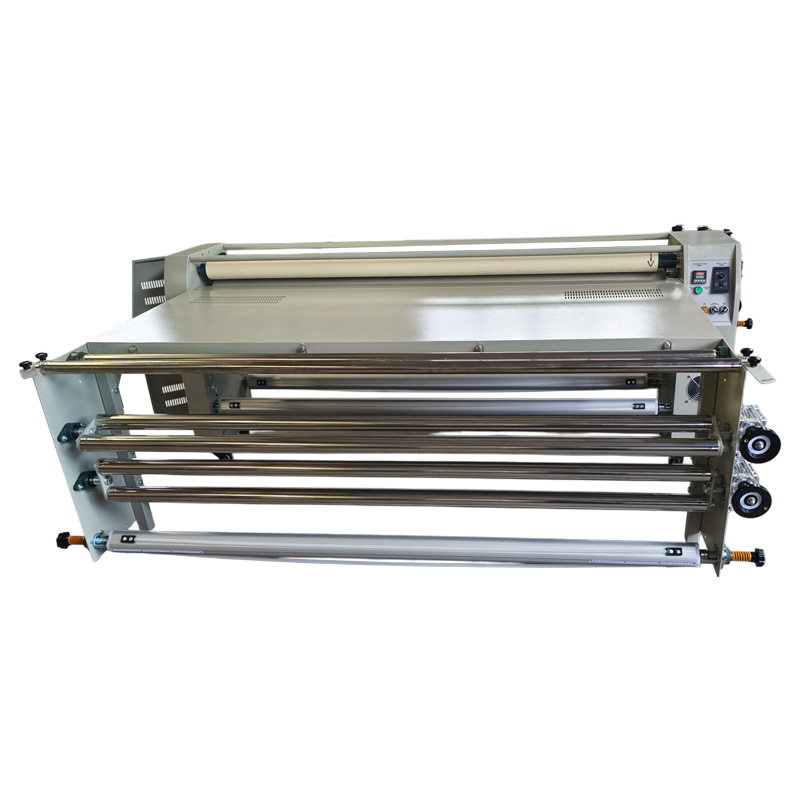

Electric Drum Heat Transfer Machine Roll-to-Roll Printing 2+2 Winding System Built-in Operation Platform Constant Temperature & Variable Speed Export Standard Plywood Packing

Online inquiry
Details Specification Packaging

  • Electric tube heating with constant temperature, even heat distribution, bright & durable printing

  • 2 unwinding & 2 winding with tension frames, roll-to-roll continuous mass production

  • Extra wide operating platform for accurate positioning & easy operation

  • 220mm high-temperature resistant roller, variable frequency speed control (0.5-1m/min)

  • 7kw low power consumption, fast heating up within 20-30 mins

  • Export non-fumigated plywood wooden case with skid for safe long-distance shipping


1800-220PT2

参数

设备型号

1800-220PTC2

毛毯宽度

1820mm

电压

220V

转印速度

0.5-1m/Minute

额定频率

50-60Hz

加热时间

20-30minutes

额定电流

18-55A

收放系统

2+2

加热辊筒直径

220mm

辊筒

耐高温滚筒

调速器

变频调速

毛毯厚度

8mm

净重

200Kg

加热功率

7kw

加热方式

电加热

主机尺寸

2400×宽600×高1200m

平台尺寸

750×宽1800×高900
