O1800-420P 价格: Model Number:O1800-420P

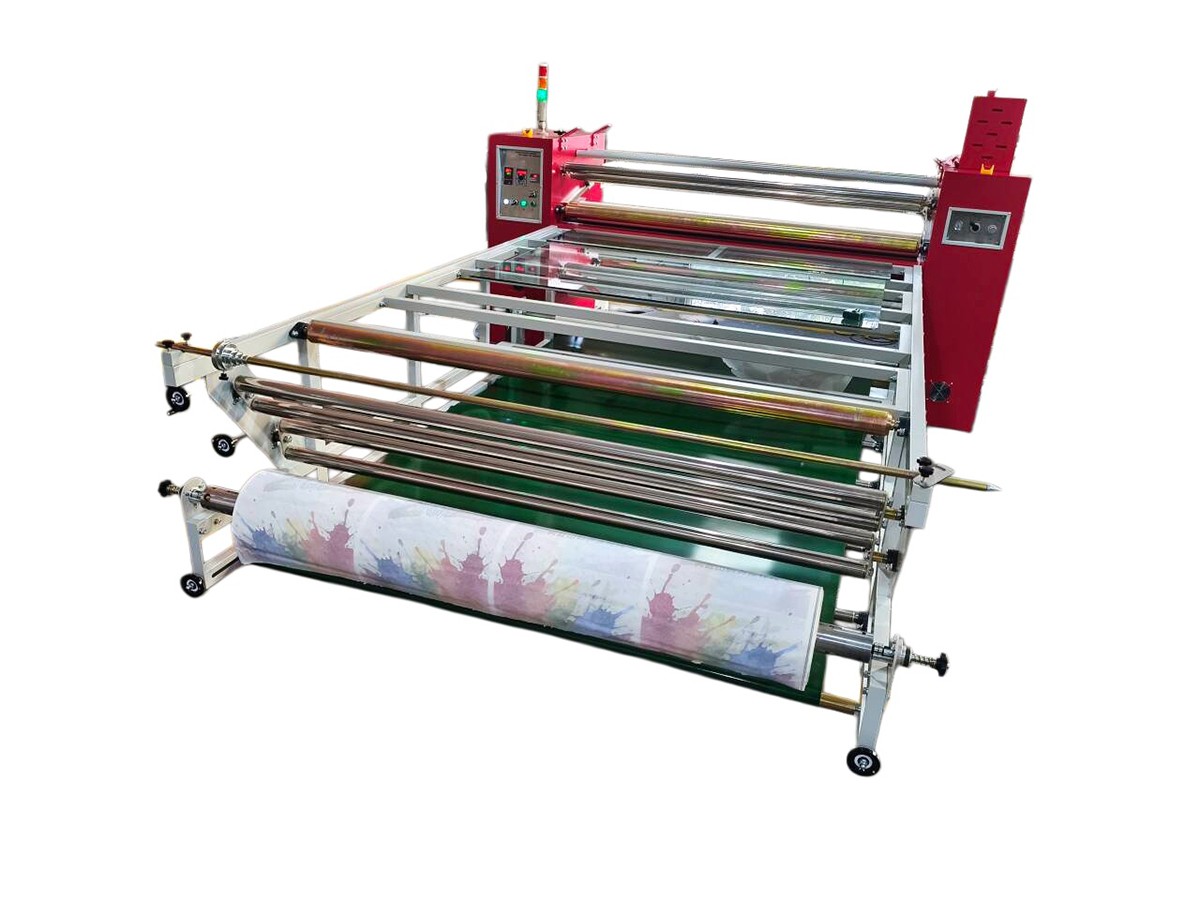

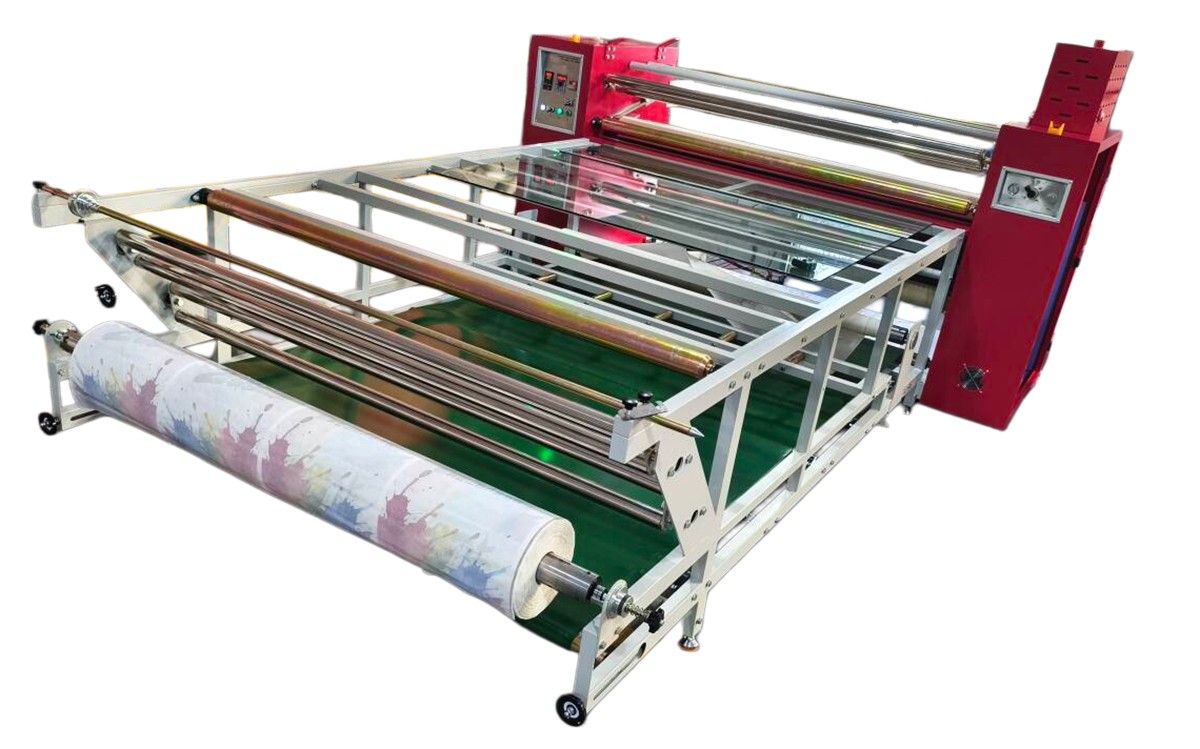

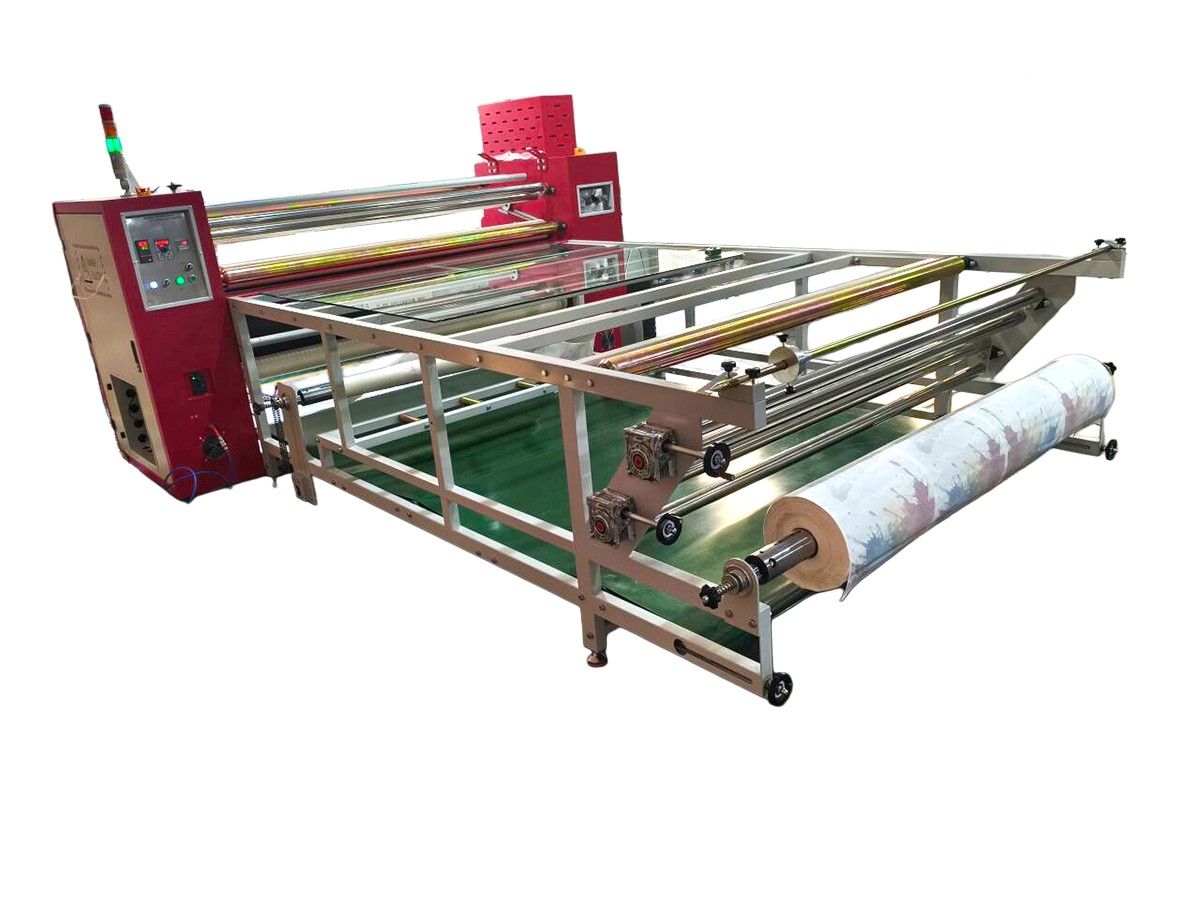

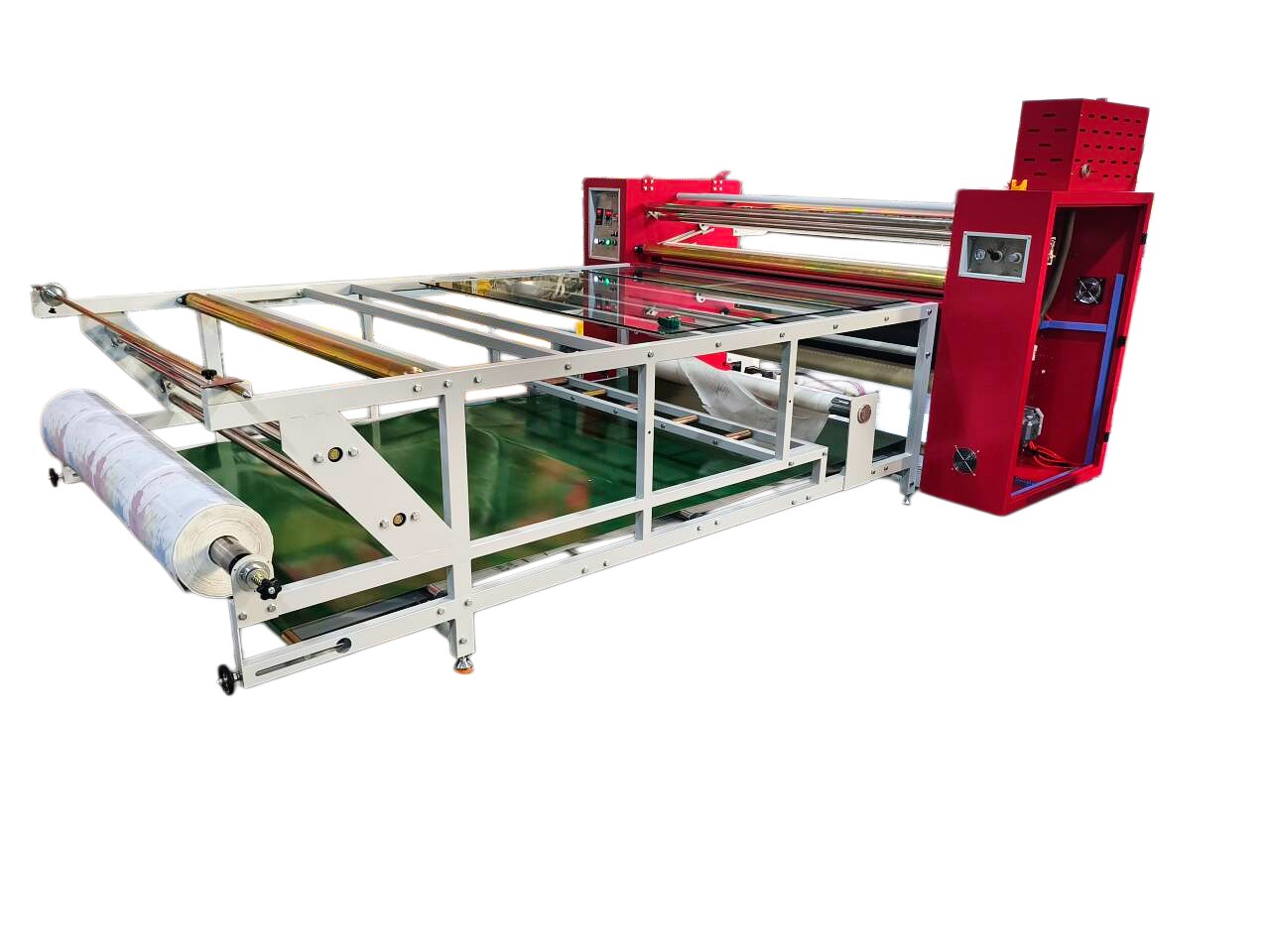

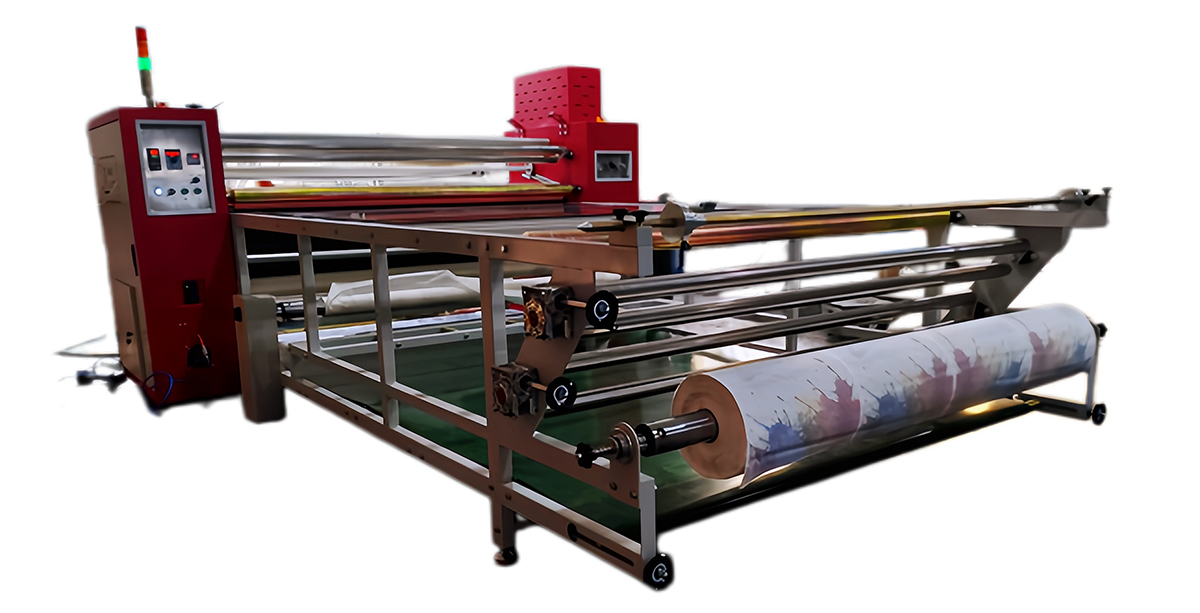

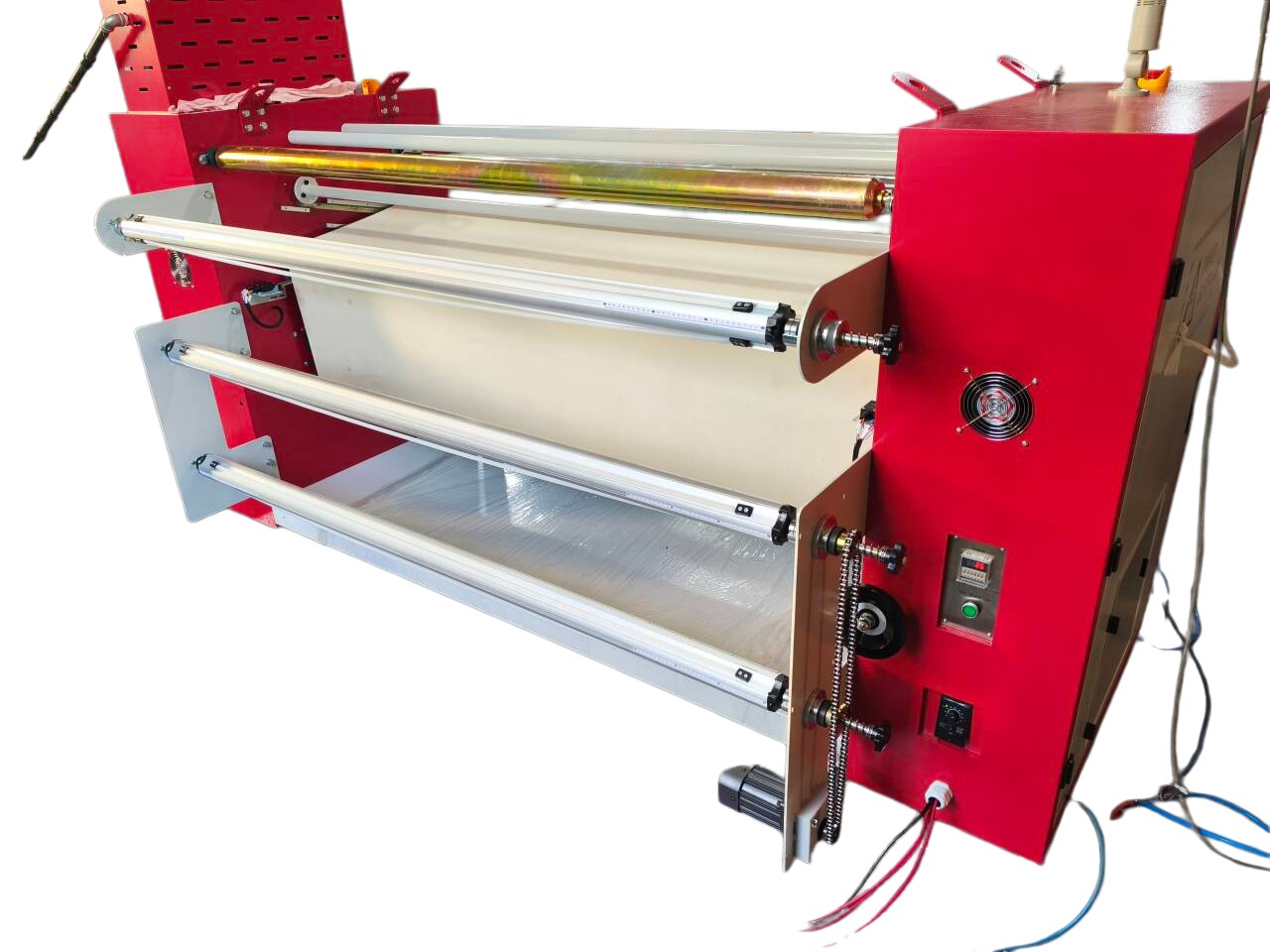

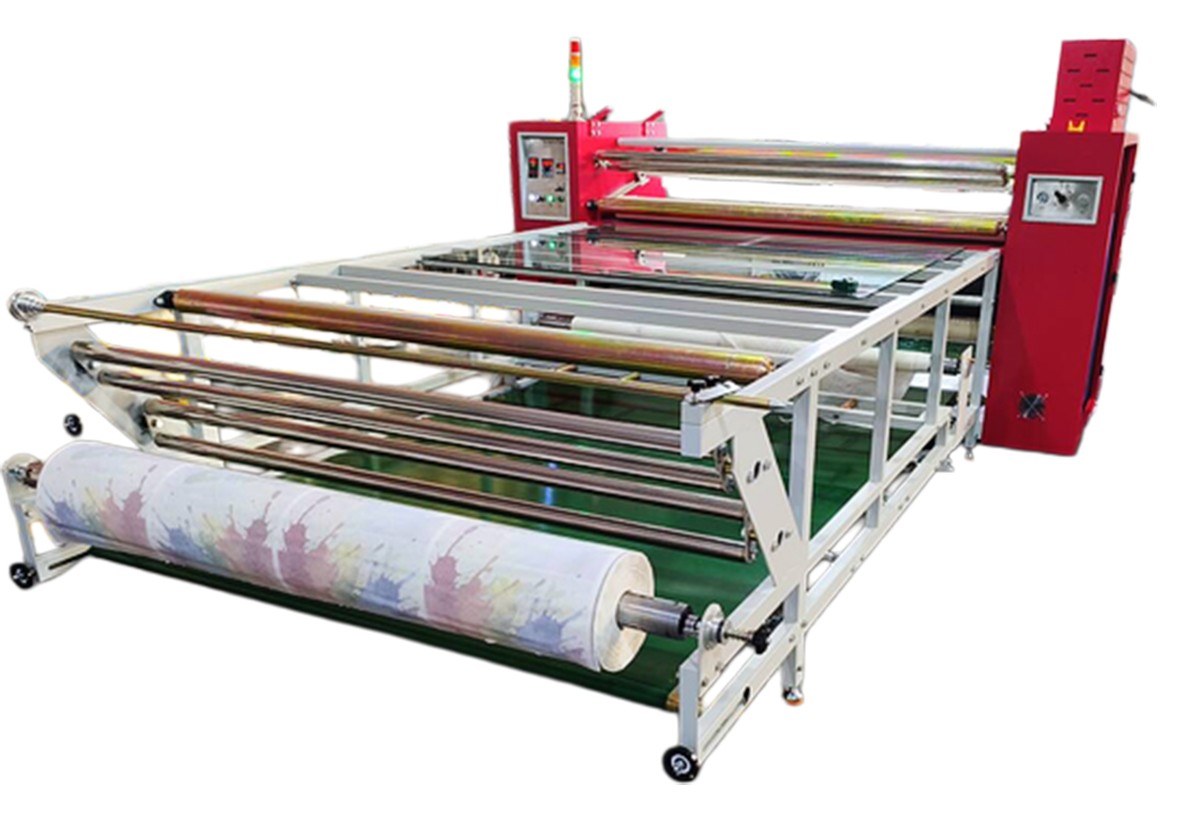

Constant Temperature Oil Heating Roller Press Large Format Oil Heating Heat Transfer Machine High Efficiency Oil Heat Conduction Press Teflon Roller Oil Heating Sublimation Machine

Online inquiry
Details Specification Packaging


  1. Adopt oil circulation heating design, uniform heating and constant temperature, effectively reduce color difference.

  2. Wide temperature range and excellent high temperature resistance, with bright color and high color fastness.

  3. Industrial wide width design, suitable for garments, home textiles, bags, advertising fabrics and other materials.

  4. Adjustable transfer speed from 20 to 120m/h, flexible for mass production and custom orders.

  5. High-density Teflon coated roller, non-stick, high temperature resistant, wear-proof and durable.

  6. Equipped with 3 sets of winding and unwinding systems, ensuring smooth feeding and rewinding.

  7. Reinforced overall frame, stable operation, low vibration and low noise for long-time continuous work.

  8. Advanced constant temperature oil control system, precise temperature control and low defect rate.

  9. Manual blanket adjustment structure, simple operation and easy to learn.

  10. Optional blanket deviation alarm and automatic cooling function for safer production.

  11. Optimized power configuration, energy saving and lower operating cost.

  12. Compact structure and reasonable size, easy installation and convenient movement.

  13. Gentle and even oil heating, no damage to chemical fiber and blended fabrics.

  14. Factory direct supply with industrial quality, cost-effective and reliable after-sales service.




中文English参数
设备型号Model1800-420
毛毯宽度Blanket Width1820mm
转印材料宽度Transfer Material Width1700mm
电压Voltage380V
转印速度Transfer Speed50-200 m/h
温度范围Temperature RangeRoom Temperature - 250℃
收放系统Rewinding & Unwinding System3 Sets
加热辊筒直径Heating Roller Diameter420mm
辊筒RollerTeflon Coating
毛毯偏出报警Blanket Deviation AlarmOptional
自动降温Automatic CoolingOptional
毛毯调整形式Blanket Adjustment ModeManual Adjustment
加热功率Heating Power22KW
总功率Total Power25KW
加热方式Heating MethodOil Heat Conduction
主机尺寸Main Machine DimensionL2830×W2570×H1560mm
平台尺寸Platform DimensionL2030×W1950×H1070mm
机器总重量Gross Weight1450kg
